Poskom X-Ray Generators
EVDS are both users and suppliers of the Poskom x-ray generators.
If you're seeking global award winning light weight , powerful HF xray technology from the world leaders in battery xray generators since 1994, read on...
Since 2009, Poskom has been a leader in equine & mixed practice battery xray generators around the globe. EVDS has been with them since then every step of the way - both as a user & a distributor of their generators
Tested in real veterinary conditions - not in a lab...
EVDS field‑tested the Mini90A on:
• Equine stifles, hocks, withers and back
• Abdominal sand cases
• Dental radiography
• Large‑frame horses (~500 kg)
• Real‑world positioning and handling — not test phantoms
The AirRay Mini90A has received international recognition at major medical technology awards. However, awards alone do not determine whether a generator performs in real veterinary practice.
Designed for veterinarians who need
one generator to do more.
Mixed Practice Veterinarians:
• Small animal radiography
• Equine lameness and PPEs
• One generator across species
• Reduced equipment duplication
Equine‑Only Veterinarians:
• Lameness investigations
• Pre‑purchase examinations
• Dental radiography
• Fast setup, minimal handling fatigue
Surgical & Referral Practices:
• Intra‑operative imaging
• Tight theatre environments
• Portable positioning flexibility
the newest addition to EVDS Imaging

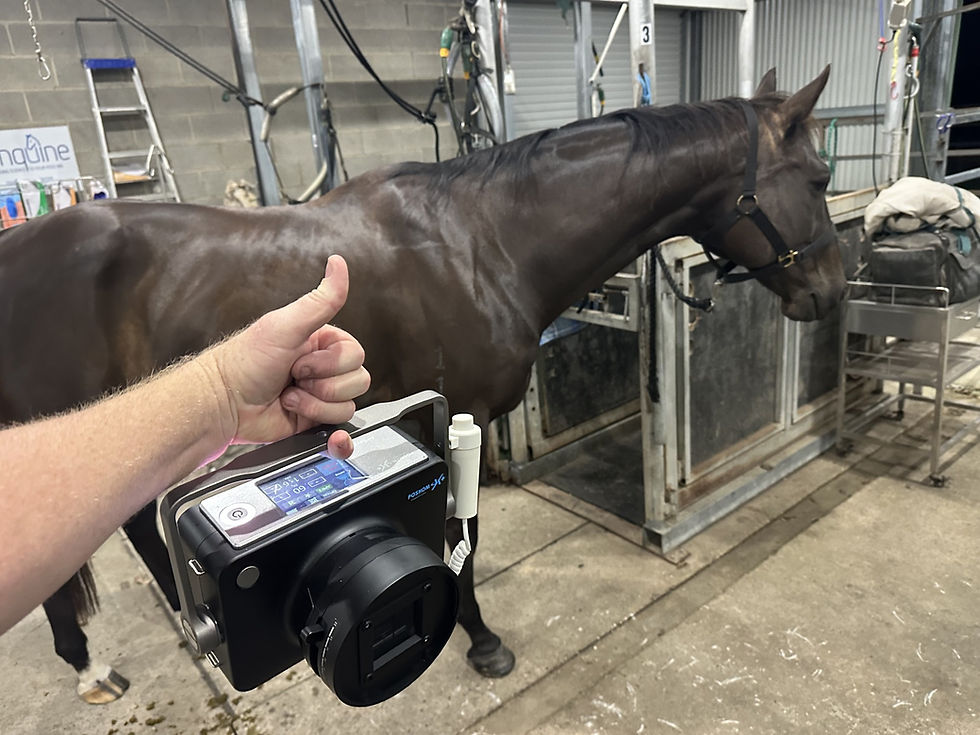

Poskom AirRay Mini 90A Xray Generator
$12,997 Ex Gst
• 90 kV output — penetration is governed by kV, not wattage
• Adjustable mA (5–10 mA) — flexibility across species & body
• Battery powered — no cables, generators or carts
• 0.8 mm focal spot — sharper detail than many portable units
• Compact, balanced design — true handheld use
• Longer exposure times where appropriate — acceptable for heads, knees, dental and immobilised views
Poskom AirRay-20 Xray Generator
The Power & speed of use without the weight!
With 1.6 kW, 90 kV , 20 mA and a 1.0 mm focal spot in an ergonomically balanced 5.4 kg (11 pound) generator case , with an adjustable angle handle, this is the lightest equine mobile cordless generator in the world.
Able to penetrate and create great images in everything from equine necks & backs, through stifles, naviculars and right down to dog teeth, this machine is the ultimate allrounder.
It comes with 2 Lithium polymer batteries and these will take an average of 100 exposures per charge.
Batteries can be charged either inside or outside of the machine, along with while the machine is packed away in its case whilst driving in between calls.
Poskom VET-20BT Xray Generator
The Popular Xray Generator of choice for Yearling Repository Xray Veterinarians since 2009!
Also very popular with equine dental and mixed practice veterinarians.
-
Lithium-ion Polymer rechargeable batteries.
-
High frequency for high quality image production.
-
1.6 KW output, 90kV/20 mA
-
Suitable for small animals through to horse heads, stifles, necks & backs.
-
Lightweight and quick to set up.
-
Adjustable Collimator Light and Laser dots for Film Focal Distance
-
Activate by hand switch.
-
7.5 kg, battery powered – no cords
-
Approx 300 exposures per charge
-
No need to remove battery to charge
-
15 APR memory settings
-
R/F module for wireless communication (D/R Interface)
-
Remote control software
-
A favourite with leading yearling X-ray Veterinarians.
-
Charge time: 4 hours
